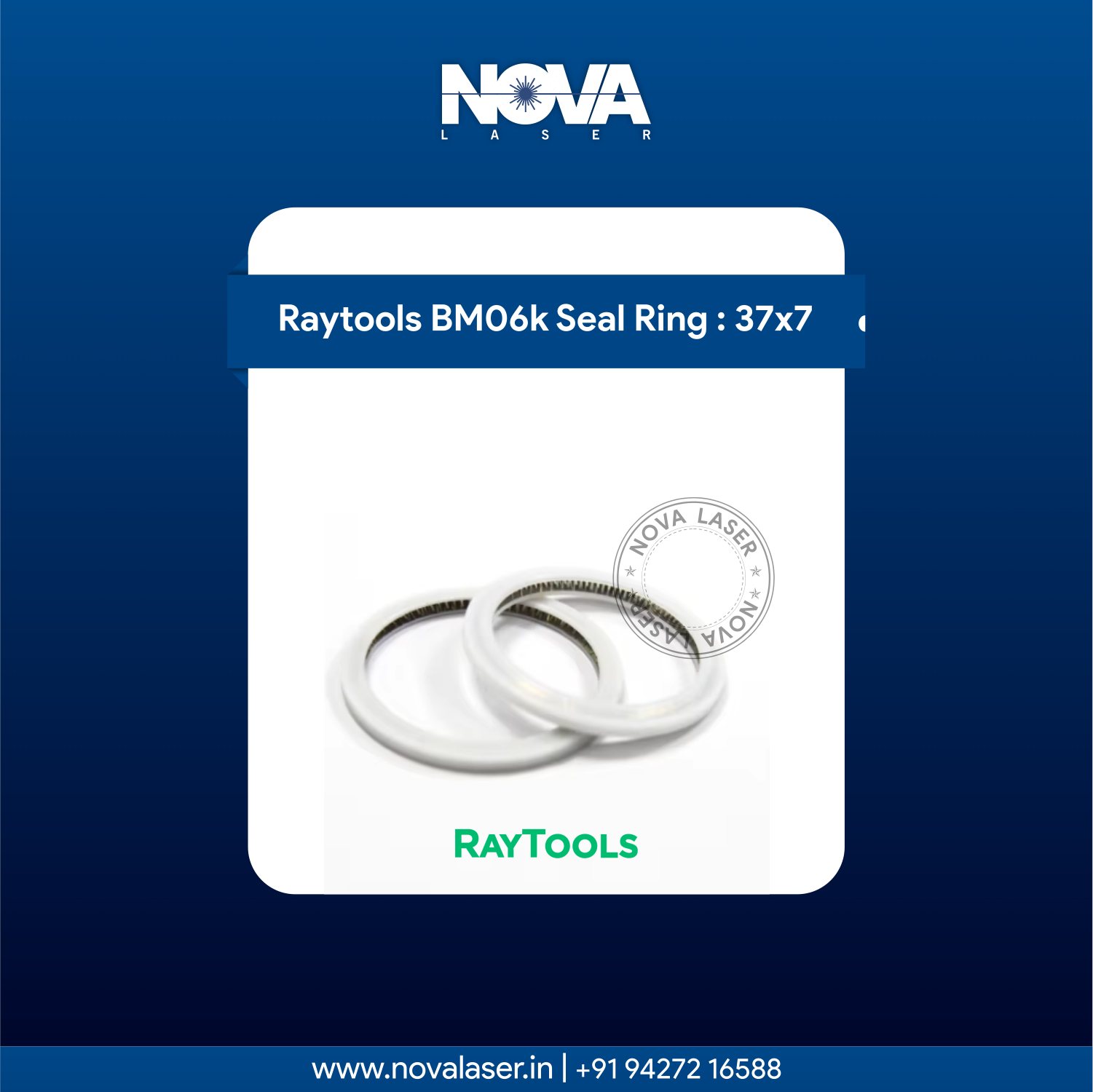

Raytools Seal Ring : For Protective Lens 37x7mm (BM06k)

OEM Seal Rign for Raytools BM06K Protective Lens

Raytools OEM Seal Ring is the oem factory part designed exclusively for Raytools BM06K series cutting heads using 37mm diameter, 7mm thick protective lenses. This precision seal ring ensures a perfect seal between lens and holder, preventing contamination that degrades beam quality and damages expensive optics in industrial laser applications.

Why Genuine Raytools BM06K Parts Matter:

• Exact 37x7mm Specification - Precision-machined to Raytools OEM blueprints
• BM06K Series Compatibility - Engineered specifically for this head model's unique groove design
• High-Pressure Rated - Maintains seal under 30+ bar assist gas pressure
• Welding-Grade Material - Withstands spatter and intense radiant heat

Protects Critical Beam Path Integrity:
✓ Contamination Barrier - Seals out plasma, smoke, and metal vapors
✓ Gas Leak Prevention - Maintains nozzle pressure for clean cuts
✓ Optical Alignment - Proper compression prevents lens tilt/misalignment
✓ Warranty Preservation - Using genuine parts maintains Raytools warranty

Critical Replacement Indicators:

• Visible Flattening - Seal no longer round in cross-section
• Brittleness/Cracks - Material degradation from heat cycles
• Lens Fogging - Contamination bypassing seal
• Focus Drift - Lens movement from improper compression
• After Every 3rd Lens Change - Preventive maintenance schedule

For Use With:

• Raytools Brand Laser Cutting Heads
• 37x7 mm (1") Standard Protective Lenses
• Most 1" lens holder assemblies
• Replacement during routine lens cleaning/maintenance

When to Replace Your Seal Ring:

• During every lens change/cleaning (recommended)
• Visible cracks, flattening, or brittleness
• Lens contamination despite cleaning
• Poor focus consistency
• After any lens assembly disassembly

Symptoms of Failed Seal Ring:

• Frequent lens contamination (daily cleaning needed)
• Uneven cutting edges
• Focus inconsistency
• Smoke residue on lens edges
• Reduced lens lifespan

Maintenance Tip:
Always replace the seal ring when changing lenses— a seal ring can protect a lens from permanent damage.
