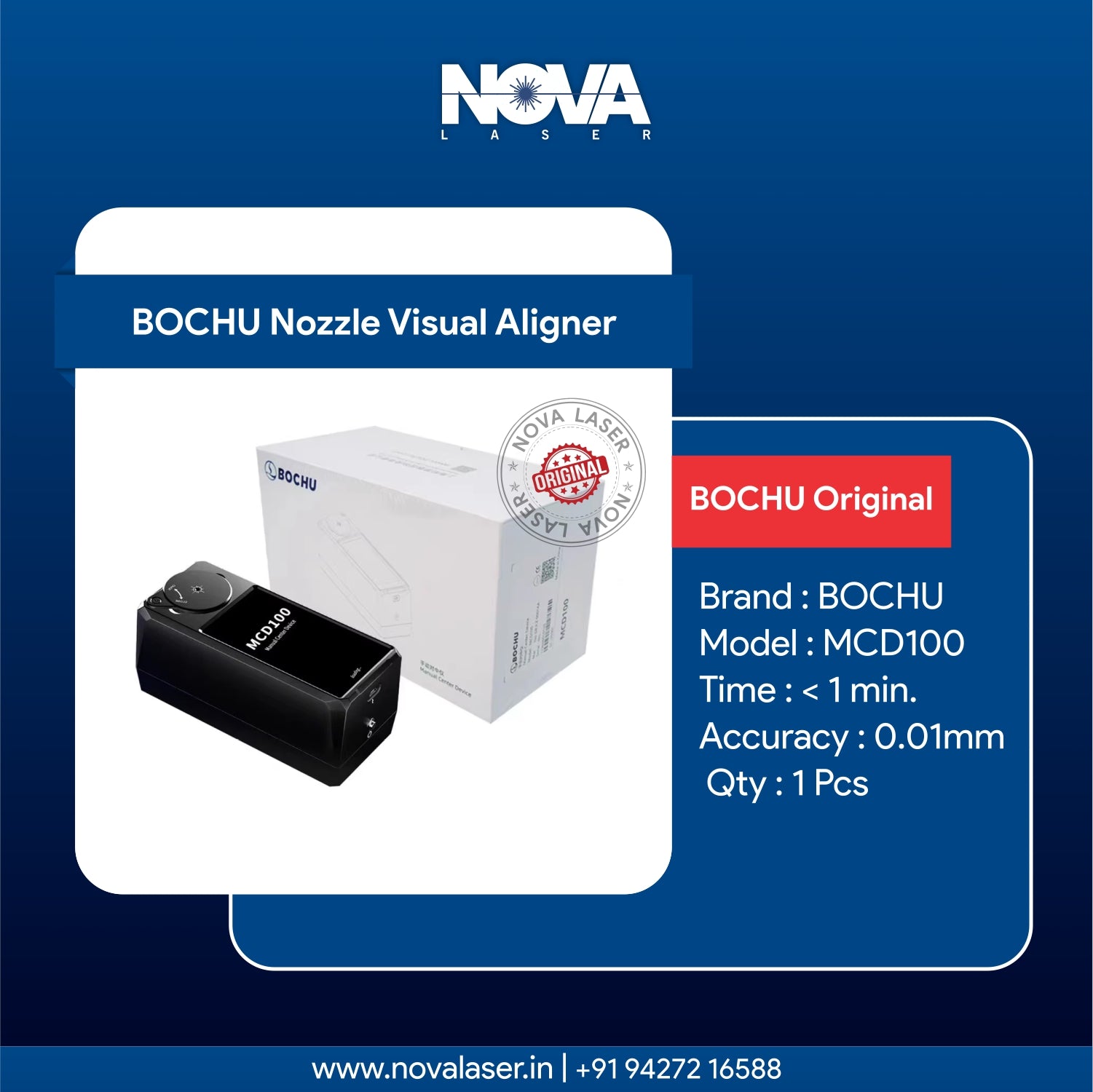

BOCHU Nozzle Visual Aligner

The Bochu MCD100 Manual Center Device (also known as the Nozzle Visual Aligner) is a high-precision, smart coaxial calibration instrument engineered for fiber laser cutting heads.

Product Description:

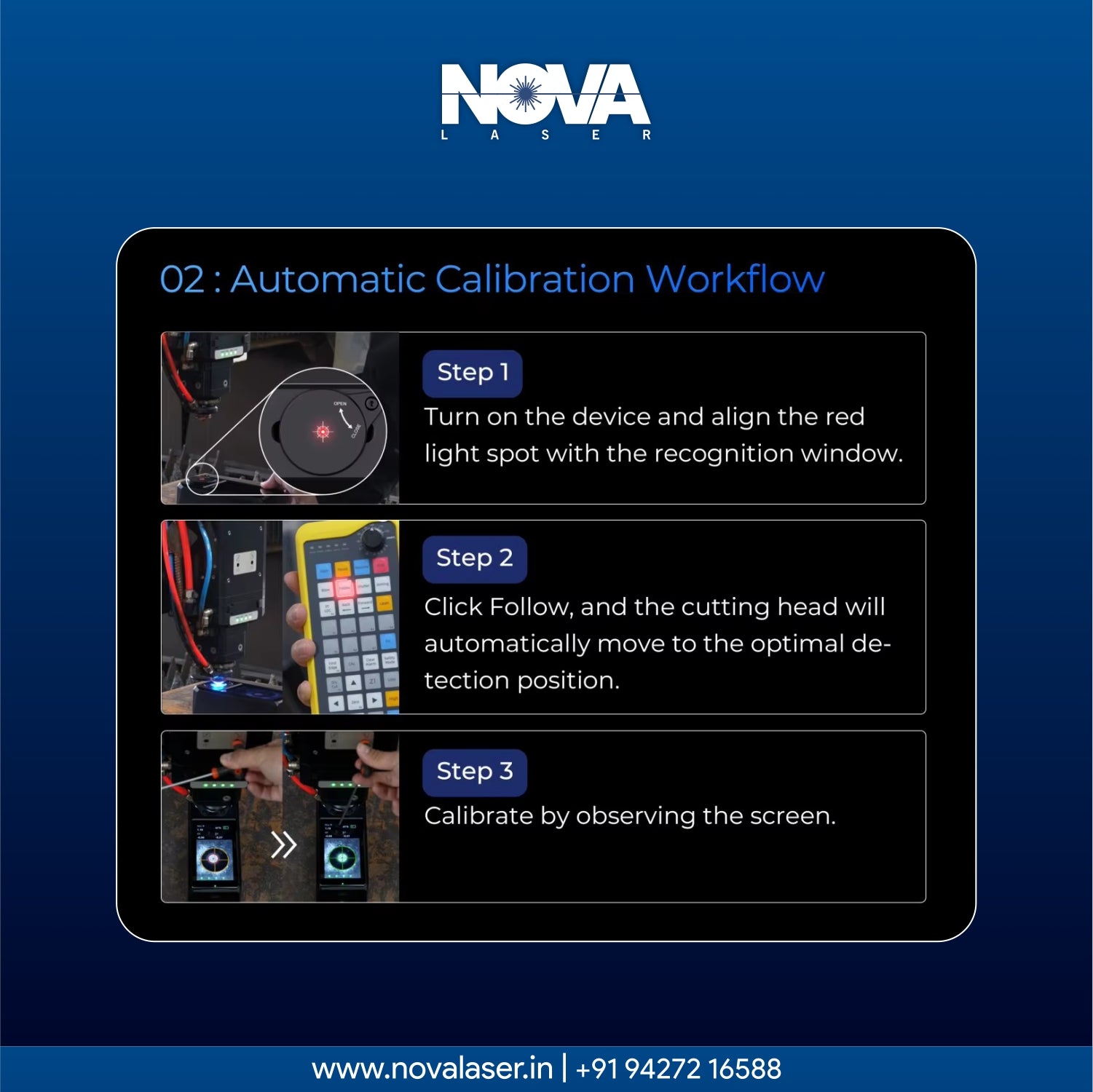

The Bochu MCD100 replaces traditional, time-consuming manual tape-shot methods for laser-nozzle centering. It integrates image acquisition, real-time display, and intelligent recognition algorithms into a rugged, standalone tool. It captures high-resolution imagery of the laser nozzle and guides the operator to perfectly align the laser beam path with the center of the nozzle in under 1.5 minutes.

Because it relies on visual sensors rather than firing test beams, it allows operators to perform non-contact calibration safely without emitting high-power laser pulses. This device is highly valued in industrial settings for preventing rough cuts, dross formation, and premature consumable wear caused by path eccentricity.

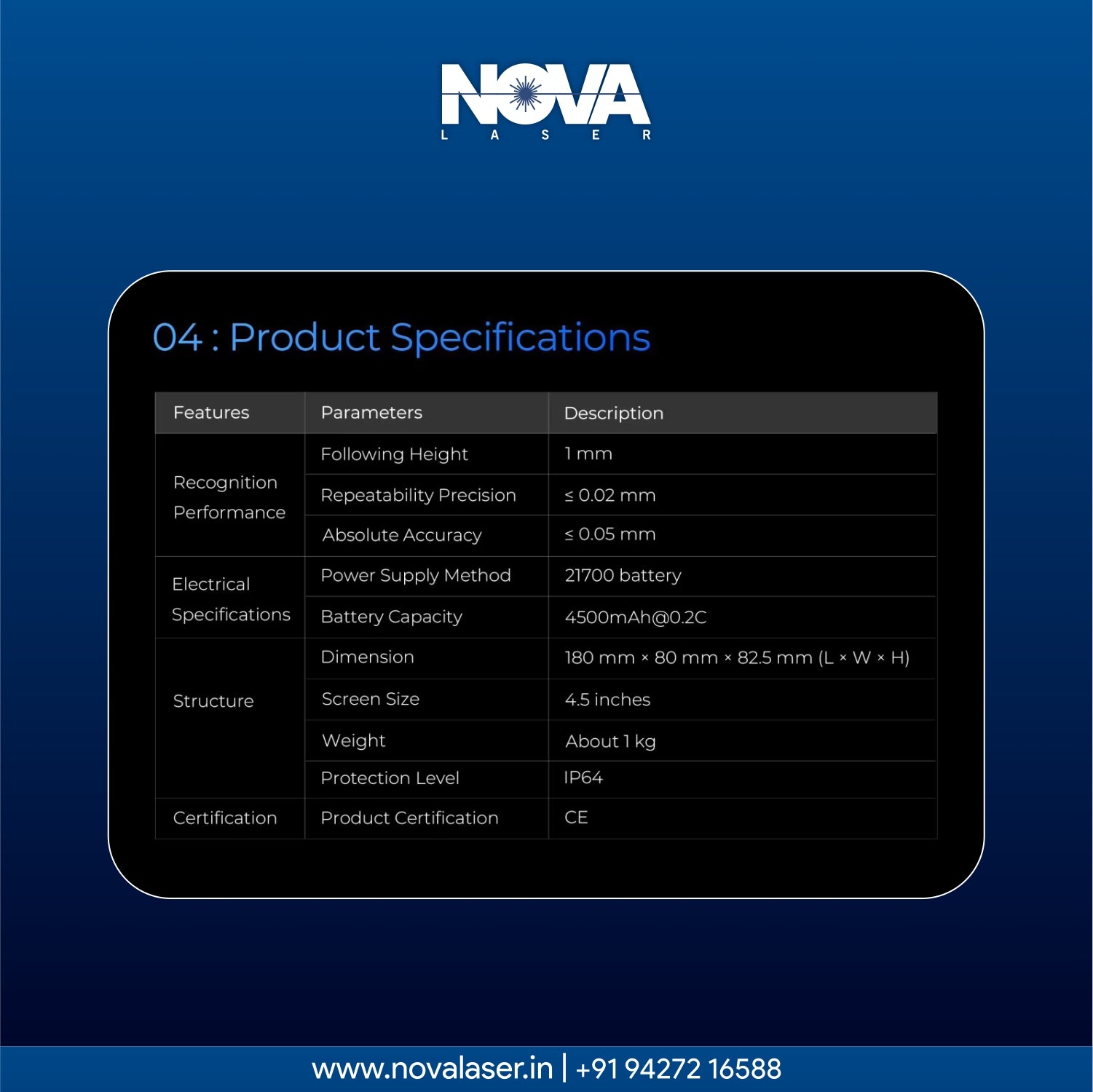

Key Technical Specifications :
Display: Integrated 4.5-inch DSP smart screen (No mobile phone or external network required)

Accuracy: Absolute accuracy ≤ 0.05 mm; Repeatability precision ≤ 0.02 mm
wewinlaser.com

Resolution: High-resolution 1920 × 1200 image sensor

Compatibility: Works across multiple leading laser cutting heads including BOCI, Raytools, WSX, OSPRI, Bodor, and HSG

Durability: Heavy-duty IP64 industrial protection level with replaceable conductive glass

Power Source: Rechargeable 4500 mAh 21700 lithium battery supplying up to 6 hours of continuous battery life via USB Type-C charging

While a standard retail price listed directly via domestic Indian e-commerce sites is currently unavailable due to the specialized industrial distribution model for these components, international supplier rates range broadly based on standard shipping configurations.

When sourcing your Bochu MCD100 Aligner, consider the following options to verify the absolute lowest price for your facility:

To purchase the Bochu MCD100 Nozzle Visual Aligner from Nova Laser, you will need to contact their sales team directly for an official quote, as they operate as a B2B distributor and do not publish individual product prices online.

Here is everything you need to know to secure the cheapest price and place your order:

Why Buy From Nova Laser?

• Ready Stock in India: Nova Laser is a highly reliable direct supplier of fiber laser consumables and control components within India. Buying from them eliminates the high international shipping fees, customs duties, and multi-week import delays you would face buying from overseas platforms.
